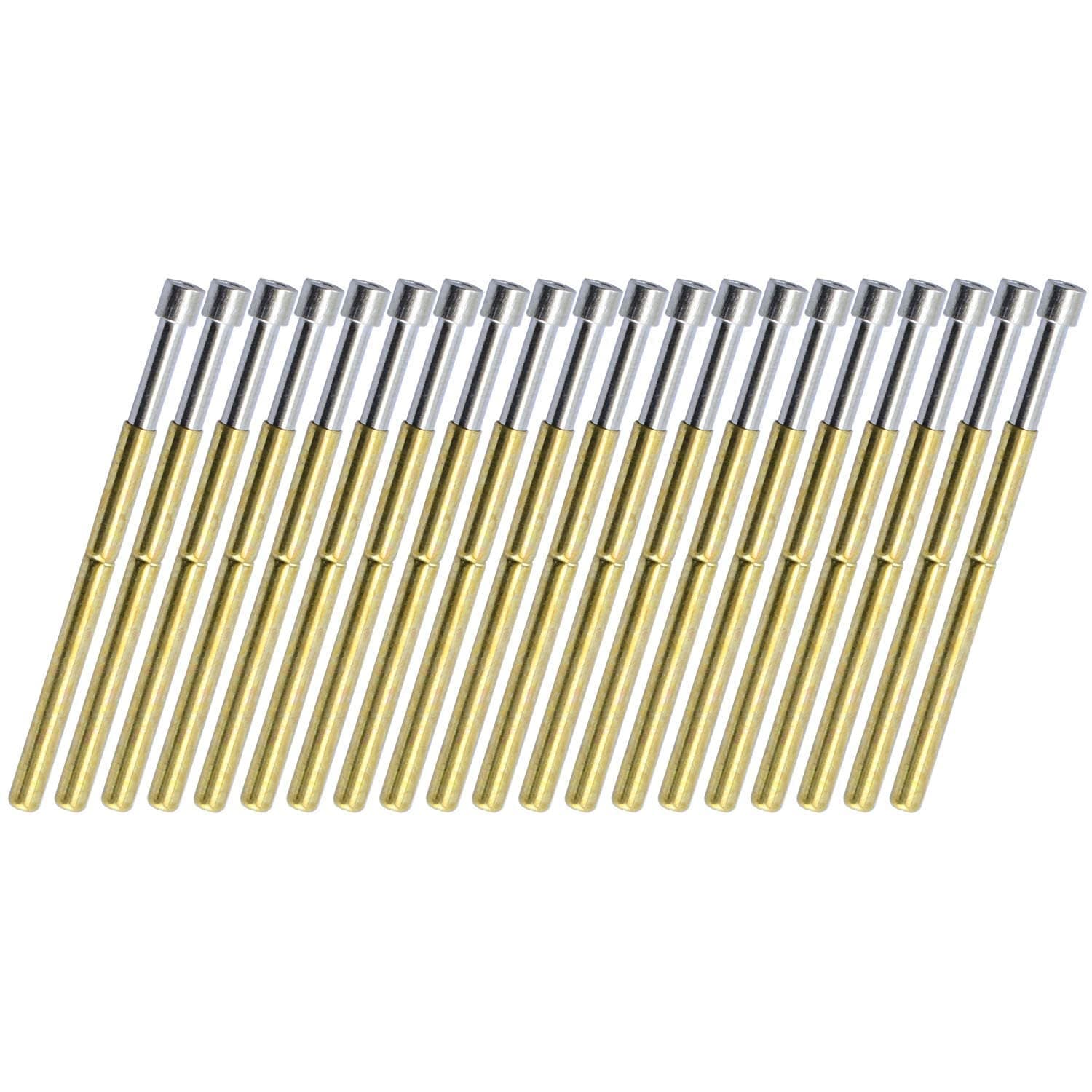

TOTOT 15pcs P75-E2 Spring Test Probe Pogo Pin Test Tools Dia 1.3mm Conical Head 1.02mm Thimble Length 16.5mm PCB Testing Pin Spring Contact Probe

I needed to program some new bootloaders into a dozen generic Arduino Nanos. You cannot do this through the USB connector, an external programmer has to be wired to the chip directly. I didn't want to solder the 6 pin AVR ICSP header to every board, so I bought these pogo pins and made my own programming cable (using a Nano as the programmer). These things are small, I included a picture of them next to a 2032 battery. I used an extra ESP-01 breakout board I had to hold the pins. At first I used pliers to insert the pins into the connector, but ended up crimping them and they wouldn't spring back. So I put them into the connector, and pushed down onto a table to jam them in (1 pin at a time is easier than all at once). I put some kapton tape over the solder points for the breakout board connector's pins because it took a lot of force and the connector's pins were poking my thumb. Using this cable I was able to program the dozen Nanos in less than two minutes with zero problems. And now I have extra pogo pins for the next time I have a project like this. I'm not going to bother to count and verify all of the 100 pins in the bag but there are plenty of them in there.

The description was right. The PICTURES are wrong. Don’t buy this unless you want the conical version.

These are well-built, no surprises with them. They’re all stringy and none are bent. They ended up being too big for my use-case, which wasn’t obvious from the pictures, but that’s on me. I’d recommend these or use them in the future

they are solid and springy, they do the trick!

I was hoping to get concave pogopins to fit a pin header. Received convex pins. The pins in the picture are P75-A2 (as in picture) but the pins delivered are P75-E2 (as in description)

Item as described

I thought I was buying the concave tip pogo pins that would fit over soldered through-hole leads. The pictures are not accurate.

The P75-E2 size pins are just small enough to fit into a standard breadboard. Use two of the mini breadboards that go for less than $1 each to build each jig. Remove all the clips from the bottom of one of the boards and stack it on top of the other. Using long nose pliers, insert pins where you need them. My only gripe with these pins is that around 5% of them were defective and got stuck in the down position. So if you need more than 100, order an extra bag.
