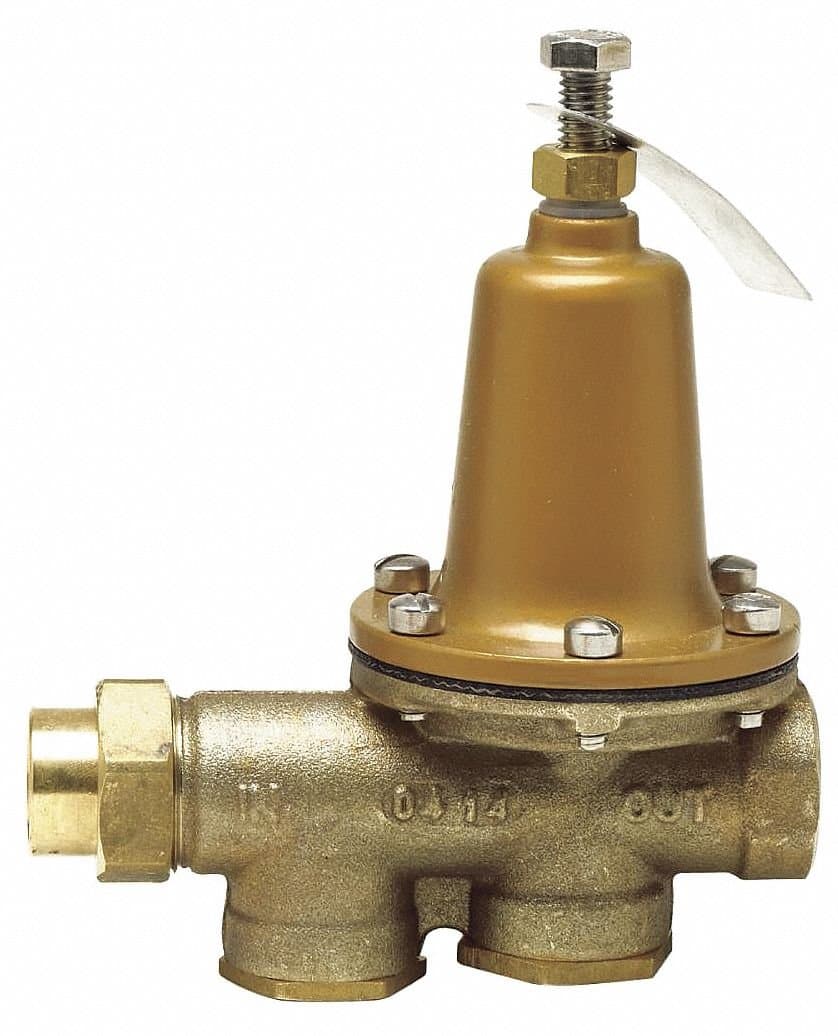

Designed so you can easily service without removing valve from the line, this WATTS water pressure reducing valve can reduce the incoming water pressure to help protect plumbing system components and reduce water consumption. Model has a standard bypass feature that allows the flow of water back through the valve into the main when pressure, due to thermal expansion on the outlet side of the valve, exceeds the pressure in the main supply.Note: The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150psi. Item: Water Pressure Reducing Valve Valve Type: High Pressure Strainer: Yes Material: Lead Free Brass Pipe Size: 1" Preset Pressure Settings: 85 psi Pressure Adjustment Range: 75 to 125 psi Connection Type: FNPT X FNPT Height: 8" Length: 6" Max. Temp.: 160 Degrees F Max. Pressure: 300 psi Standards: ASSE 1003, CSA B356, IAPMO
| Material | Brass |
| Brand | CAI - WATTS |
| Item dimensions L x W x H | 6.75 x 4 x 8.25 inches |
| Exterior Finish | Brass |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Press |
| Outlet Connection Type | FNPT |
| Maximum Operating Pressure | 3E+2 Pound per Square Inch |
| Number of Ports | 2 |
| Specification Met | CSA |
| Valve Type | high_pressure |
| Manufacturer | CAI - WATTS |
| UPC | 696333460293 |
| Part Number | 1 LF25AUB-HP-Z3 |
| Item Weight | 5 pounds |
| Product Dimensions | 6.75 x 4 x 8.25 inches |
| Item model number | 1 LF25AUB-HP-Z3 |
| Item Package Quantity | 1 |
| Batteries Required? | No |
