How exactly do you control the pressure you want? Is there a regulator or something? And also how do you bleed the pressure off when not towing loads?

There is a guage, black toggle switch and silver button on control panel mounted inside of cab. To add air press the black toggle switch and watch the guage. To release air press the silver button. Works well. I just installed my air bags and controller a few weeks ago and hauled a golf cart in back of my F350 and pulled a tag along 26 foot camper to beach for July 4th week. Whole system worked really nice. I could tell a huge difference in the way the truck handled with that much weight. Well worth the money. I had to play with my air bags adjusting air pressure to get the results I wanted. My final out come on pressure was about 75 to 80 lbs of pressure. Hope this helps. One final note. The controller has a sensor to keep 10 lbs of pressure in air bags when not hauling. Just a safety measure to keep from damaging the bags but you cannot see any difference when truck is unloaded.

Will this work with air shocks?

It should work the same. But you may want to check with vehicle manufacturer.

Will this work with the air lift 60824 air lift 1000 ?

Hi Ernie, Yes, it will work.Thanks!

It is very well contained in a shipping box made of strong card board, mine came with no damage what so ever, like every thing I've ordered from amazon, hope this helps

Brand	Air Lift
Voltage	12 Volts
Recommended Uses For Product	Tire Inflation
Power Source	12 volts
Noise Level	70 Decibels
Special Feature	Single Path System, Sensor Automatically Activates Compressor If Pressure Drops
Included Components	Air Lift Company 25592 Load Controller Single Gauge
Item Weight	4.38 Pounds
Color	Silver
Material	Aluminum
Product Dimensions	12.5"L x 6.4"W x 8"H
Style	Silver
AC Adapter Current	20 Amps
Motor Horsepower	1.58 horsepower
Model Name	Air Lift 25592
Tank Volume	2.3 Gallons
Maximum Operating Pressure	45
Manufacturer	Air Lift Company
UPC	647367413359 729199255922
Global Trade Identification Number	00729199255922
Item Weight	4.38 pounds
Item model number	25812
Is Discontinued By Manufacturer	No
Exterior	Painted
Manufacturer Part Number	25592
OEM Part Number	25592
Special Features	Single Path System, Sensor Automatically Activates Compressor If Pressure Drops

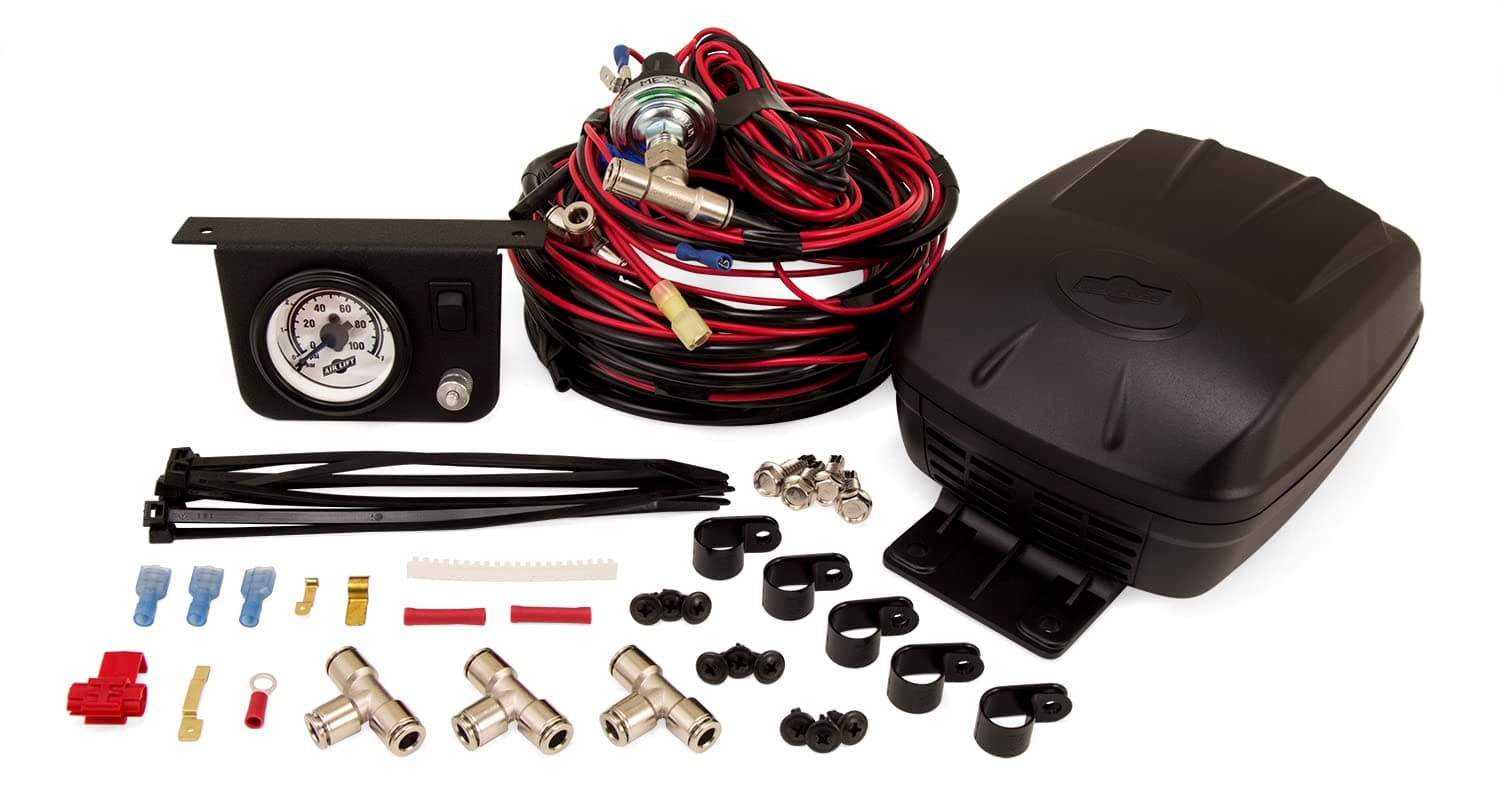

Air Lift Load Controller II On-Board Air Compressor System - 25592
