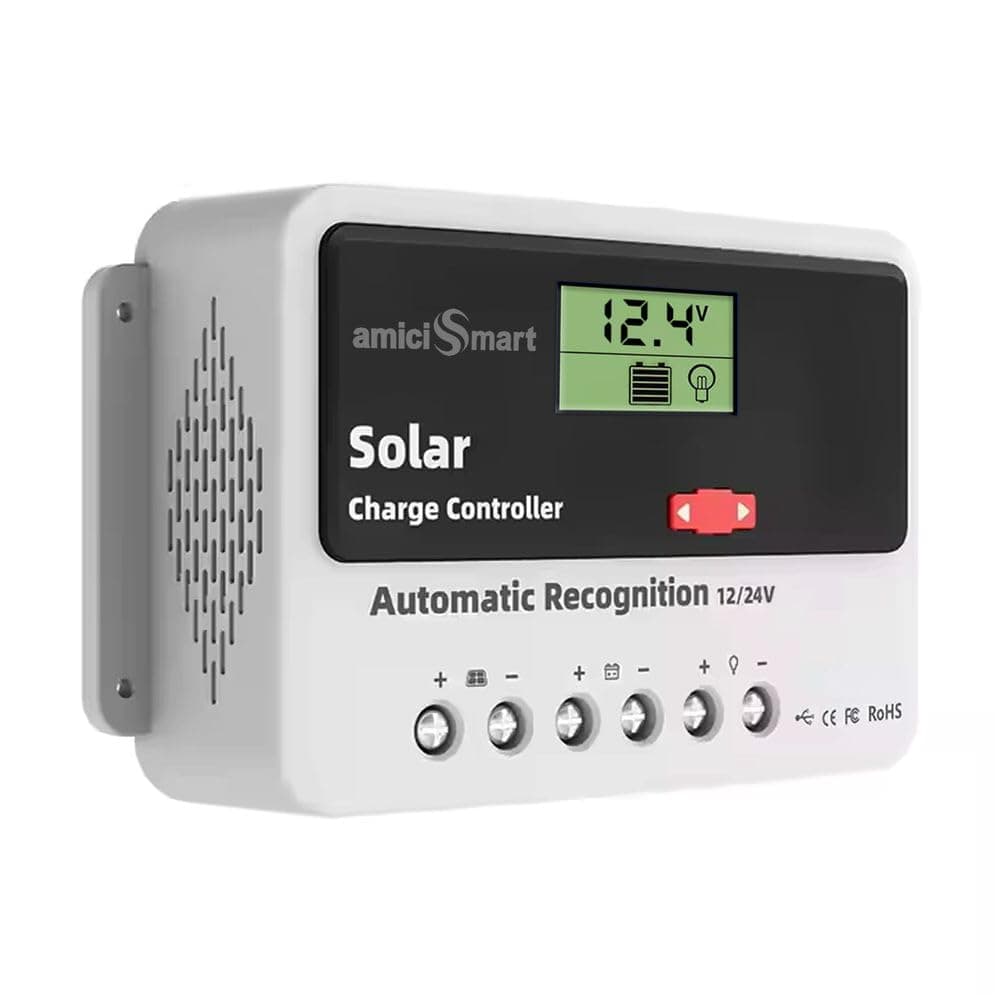

amiciSmart Solar Charge Controller 40A, Intelligent Battery Regulator for Solar Panel LCD Display with USB Port 12V/24V, 1.04kW (40A)

الوصف

NOTE: - Please follow the wiring instructions before setup as the connection sequence is important. First the battery should be connected then panel and then load.Specification: *Battery voltage: DC 12V/24V Auto *Charge /Discharge current: 40A *Over discharge Protection: 10.7V/21.4V *Charge recover voltage: 12.6V/25.2V *Overcharge Floating charge: 13.7V/27.4V *Over discharge Protection: 10.7V/21.4V *Equalization: B01: sealed 14.4V / B02: Gel 14.2V / B03: flood 14.6V Intelligent solar controller: The product can automatically manage the working of solar panel and battery in solar system. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically (LCD will be unavailable at the same time). Easy to operate and installation : Wiring STEPS: Screw the adjustment screw counter-clockwise until the plates move down. Insert the wire into the new opening between the plate and the "top" of the Terminal hole, not under it. Screw the adjuster clockwise and the plate will move upwards thereby squishing the wire in the Terminal hole. Installation STEPS：Connect the system in the order of 1.Battery > 2. Load > 3.PV Array in accordance with Figure, and disconnect the system in the reverse order 3. 2 .1. Note: <1>Please keep it in cool and well ventilated place to maintain good heat dissipation. <2>the regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries. <3>Make sure your battery has enough voltage for the controller to recognize the battery before first installation. <4>The working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.
