Does anyone have a pdf of the datasheet that comes in the box? ours was damaged and i'd like to keep a record of it for future reference.

I probably can find one, but it's worthless. I tried to figure it out (no dice) then took it to the local motor shop and they didn't understand it either. Typical chi-com gibberish with no explanation of what it does or how to hook it up. They said bring in the VFD and that thing and we can probably get it working...if it works at all.

Is the supply voltage (15v -30v) put in line with the current wires or are there separate terminals for that? The pictures dont show any?

I use this to simulate a 4-20mA sensor(in my case a 24v current loop) I do not need a separate power supply as the 2 wire current loop is both the power supply and the signal path. I would consider a different device if you need to supply power to something. There are many other devices like this that use a power supply and send out voltage or current.

What is the display mode setting for the current loop simulator?

This current loop simulator has 3 display modes: Actual Current/Percentage/Hertz.

Desertcart Logo

تسليم إلى EGYPT

للحصول على أفضل تجربة احصل على التطبيق

قم بتنزيل التطبيق

نحن مصدر العناصر من

الإمارات
UK
الهند
USA
اليابان
KOREA

خدمات العملاء

معلومات عنا

دعم العملاء

الوصف

⚙️ Calibrate like a pro — precision and speed in your hands!

SMART MEMORY STORAGE - Save up to 8 output presets for rapid, repeatable testing workflows.
CUSTOMIZABLE SIGNAL RANGE - Flexible 3-21mA output lets you tailor signals to exact device specs.
EFFORTLESS CONTROL INTERFACE - Intuitive rotary encoder paired with a crisp LCD for seamless adjustments.
PINPOINT PRECISION CALIBRATION - Achieve ±0.5% output accuracy for flawless sensor and PLC tuning.
PLUG PLAY INDUSTRIAL COMPATIBILITY - Polarity-free terminals and wide voltage support simplify integration.

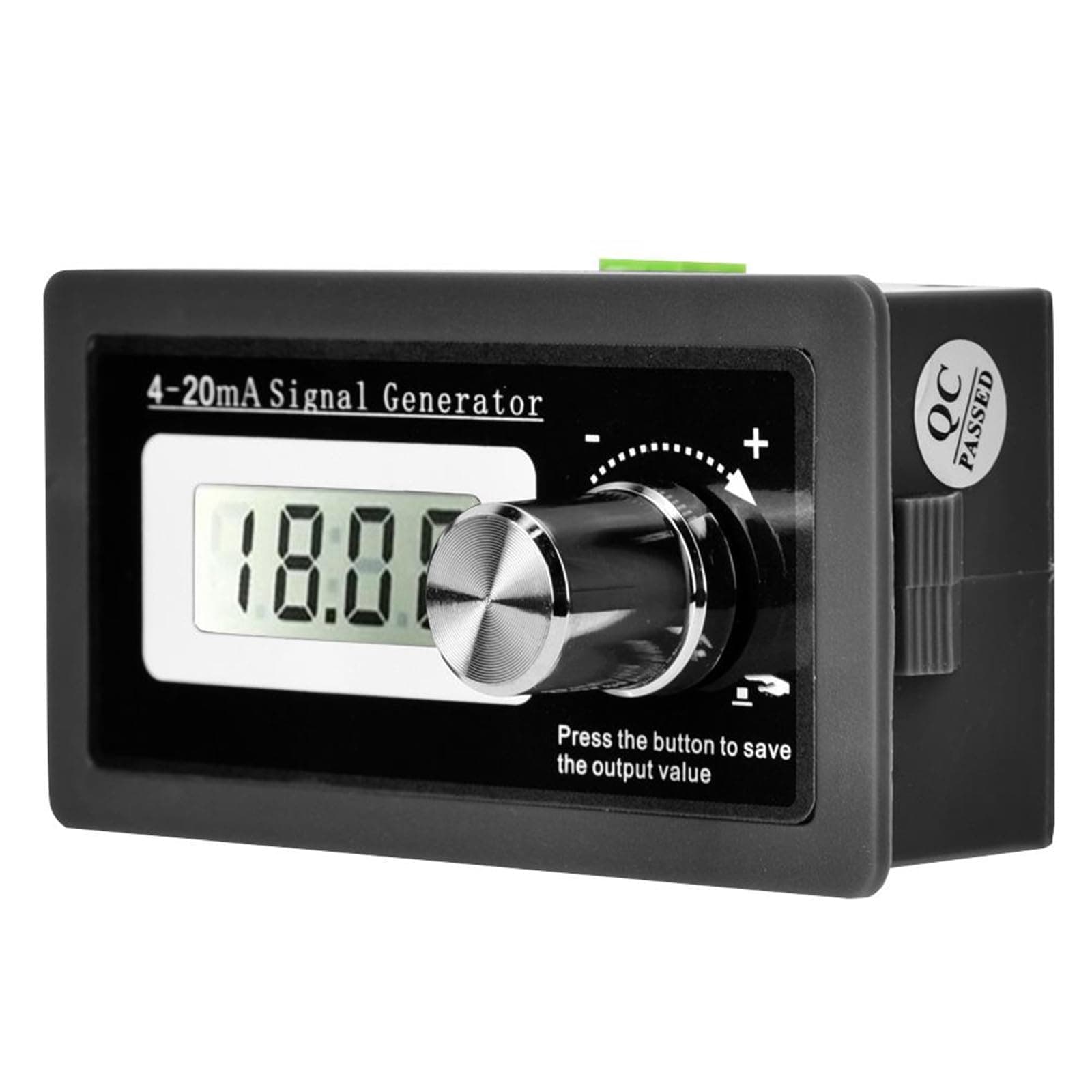

The Jadeshay 4-20mA Two-Wire Current Loop Signal Generator delivers ultra-precise ±0.5% accuracy with an extended 3-21mA range, featuring a clear LCD and rotary encoder for intuitive control. Its programmable memory and polarity-free terminals streamline industrial calibration tasks across sensors, PLCs, and control systems, making it an essential tool for professionals demanding reliable and efficient signal simulation.

المراجعات

J**F

Simple, Small and works great!

This 4-20ma generator is live.You do not have to press the button to save the output.As you scroll up - so does the output.Is small form is great.I like that fact that this one is Loop Power!I will be buying more to add to my PLC Stand.

21.04.2021

H**Y

Works as expected. Simple as could be.

Works great for troubleshooting or building out loop receivers.

14.02.2024

N**S

Buy a more expensive tester.

Broken upon arrival. No matter the direction of voltage input screen will not light up, when in line with my current input voltage drops to 3.2v. I also tested with my other sensors to be sure the card was wired correctly, this device is none functional at best.

22.07.2025

R**.

These are VERY lightly built, and intended for a panel mount.... But they work great!

Needed a quick trouble shooting 4-20MA generator. These were inexpensive and shipped quickly.Powered on and started using right out of the box.The range is ONLY 4-20 MA, (not below 4MA or above 20MA) but the resolution is very accurate and worked great.Definitely was a cost-effective solution for me.

21.06.2023

S**C

Performance

Works great for my project simulation. Only problem is it doesn’t keep previous value when power turns on back.

26.11.2023

D**E

Great unit.

I use this for generating an analog signal for speed signals while testing in QC. It’s a loop-powered generator that is cost-effective, simple and does exactly what I need.

18.02.2020

G**L

Works well

Purchased this signal generator four months ago, to simulate an industrial sensor input on a monitoring device prototype. It has been running 24/7 since then and still going strong.

11.03.2020

A**.

Problem with display

There is a shadow area and the display is not fully lit. The second one in the batch seems to work as intended.I will require a replacement-Waiting on seller to contact me back-

4.12.2023
