Delivered without instructions -- where can a 'user's manual' be found?

Hi, there is a PDF Instructions on the product page -- Product information -- Technical Specification -- User Manual pdf https://images-na.ssl-images-amazon.com/images/I/C1X8DiomGTS.pdf Hope it could help you.

Is the usb output fixed or is it adjustable?

It's not fixed. I had it as high as 13.3 volts in my application of the USB connector. You need to set output to 5v before using any standard usb device.

In the instructions it says to use a diode if using for charging, where does the diode go?

There are two good answers here; when charging a battery with this converter, a series diode should be placed between this device's output and the battery to prevent the battery from attempting to backcharge this device if this device's output drops below battery voltage. In addition... if this device is used as a charge controller for a phototaic (solar) panel, a series diode should also be placed between the panel and this device to ensure that this device will never attempt to backcharge the panel. I suggest the use of a fairly significant Schottky diode for either application.

Constant output voltage with changing input voltage? If I have solar panels as an input with a chaning voltage (+-. 5V) will this affect the output?

Check the limit of input shown in the instruction manual. This unit will regulate voltage or amperage, but not both at the same time.

Fully operational. Shipping worldwide, on schedule.Duty & taxes paid at delivery

المساعدة تتبع الطلب

الحساب عربة التسوق

Fully operational. Shipping worldwide, on schedule.Duty & taxes paid at delivery

المساعدة تتبع الطلب

الحساب عربة التسوق

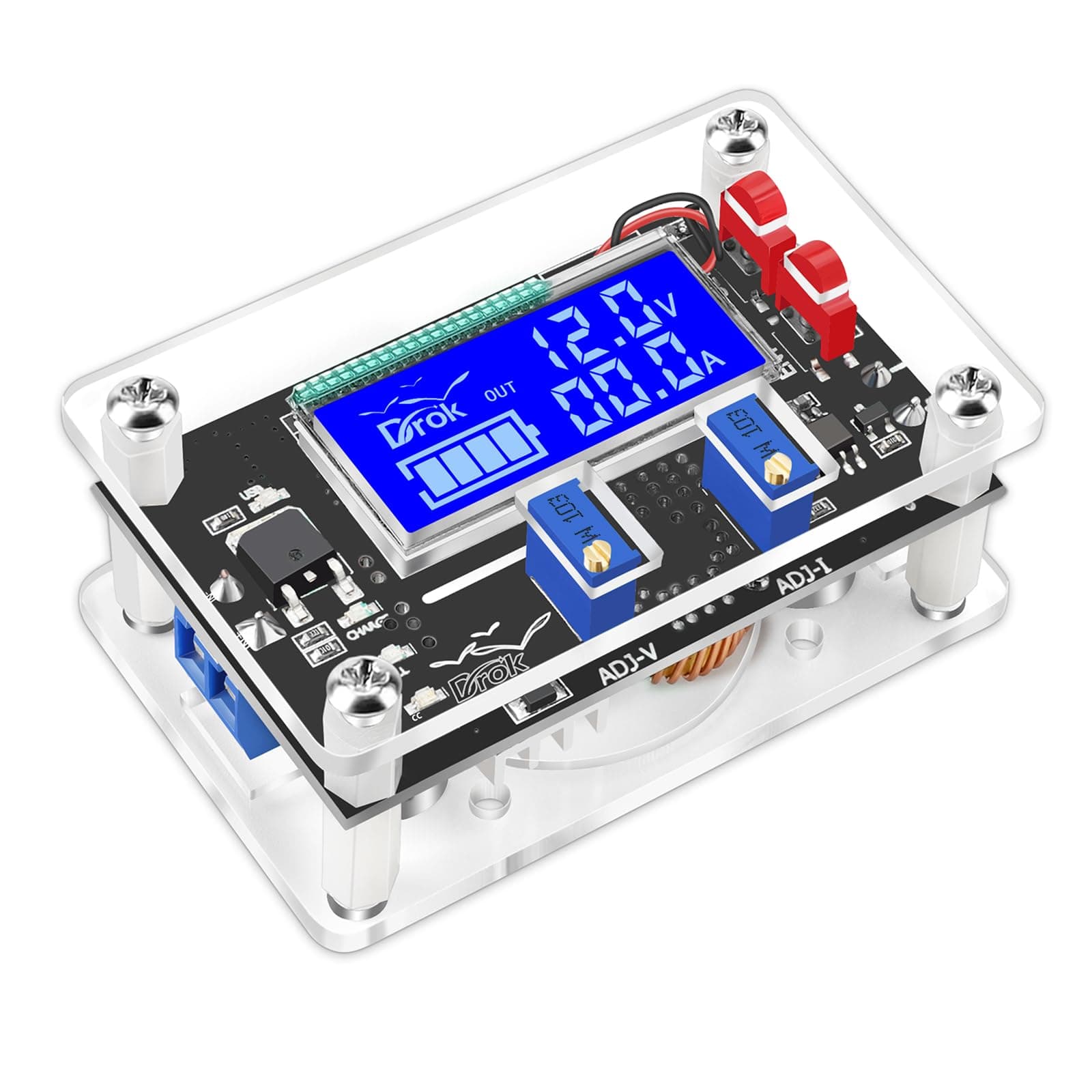

DROK DC Buck Module, Adjustable Buck Converter Step Down Voltage Regulator 6V-32V 30V 24V 12V to 1.5-32V 5V 5A LCD Power Supply Volt Reducer Transformer Module Board with USB Port Protective Case

DROK DC Buck Module, Adjustable Buck Converter Step Down Voltage Regulator 6V-32V 30V 24V 12V to 1.5-32V 5V 5A LCD Power Supply Volt Reducer Transformer Module Board with USB Port Protective Case

Product ID: 264052574

Details

Brand
DROK
Current rating
5 Amps
Mounting type
Rack Mount
Power source
DC Powered
Product dimensions
4D x 6.6W x

⚡6V-32V input range

📊Large LCD voltage/current display

🔋5A max output current

E£ 5524

Duties & taxes included

In stock

Sold byAmazon EGYPTDelivered byDesertcartCustomer service byDesertcartReturns14 days · 30 with PRO

Buyer Protection · Full refund if your order doesn't arrive as described.

Desertcart purchases this item on your behalf and handles shipping, customs, and support to EGYPT.

Secure transaction

Description

⚡ Power your projects with precision and protection!

VERSATILE USB PORT - Integrated USB output with on/off control for flexible device powering
ROBUST POWER HANDLING - Supports up to 5A current and 75W max power with recommended 50W continuous use
USER FRIENDLY INTERFACE - Clear LCD shows real-time voltage and current for instant monitoring
SMART SAFETY PROTECTIONS - Built-in short circuit, over-temperature, and reverse polarity safeguards
PRECISION VOLTAGE CONTROL - Continuously adjustable 1.5V-32V output for tailored power needs

The DROK DC Buck Module is a compact, high-efficiency step-down voltage regulator supporting 6V-32V input and adjustable 1.5V-32V output at up to 5A current. Featuring a large LCD display, USB port, and multiple safety protections, it’s ideal for DIY electronics, LED drivers, and solar controllers, delivering reliable, customizable power with professional-grade safeguards.

Specifications

ASIN	B07JZ2GQJF
Best Sellers Rank	#20,624 in Computers ( See Top 100 in Computers ) #94 in Computer Power Supplies
Brand	DROK
Brand Name	DROK
Current Rating	5 Amps
Current rating	5 Amps
Customer Reviews	4.4 out of 5 stars 1,858 Reviews
Item Dimensions D x W x H	4D x 6.6W x 2.5H centimeters
Manufacturer	DROK
Maximum Frequency	180 KHz
Minimum Frequency	60 Hz
Model	180080AFA
Mounting Type	Rack Mount
Mounting type	Rack Mount
Number of Items	1
Part Number	180080AFA
Power Source	DC Powered
Power source	DC Powered
Product dimensions	4D x 6.6W x 2.5H centimeters
Specification Met	CE, ETL
Specification met	CE, ETL
Unit Count	1 Count

Reviews

M**R

Works Great!!!

6.08.2025

A**R

Awesome!

Great price, face delivery. Awesome product. Very compact and I was able to dial the exact output. 6.5 in / 1.50 out

19.08.2026

H**T

As expected

Arrived on time and in good condition. Well wrapped/protected.

11.03.2024

J**Z

Excelente producto.

Es muy práctico, muy buena presentación, la carcaza protectora muy buena, regula muy bien. Muy recomendable para ser usado en proyectos.

24.06.2022

T**N

Real Protection

Wonderful Product for me! Accidentally wired input polarity backwards during setup (human error), and this module survived exactly as advertised. Reverse polarity protection prevented any damage, no smoke, no heat. After correcting wiring, the buck worked perfectly. Also tested with low voltage (5V) and brief 9V input — no issues. Protection systems are real, not marketing. Would buy again.

23.01.2026

C**S

Very Handy

Works with the Pi4 for me using the right 12v input, its just a shame the USB cant be automatily on after a power cycle,

11.11.2022
