Can this be used to make a closed loop stepper motor driver?

This is only a driver for the stepper motor. The CL42T is a closed loop version driver which integrates the stepper driver and encoder reader in one unit and resolves step errors. It connects to a stepper motor/encoder unit. Otherwise, you can use this as the driver, but will need a controller for encoder input to resolve step errors.

The product title says 10-30vdc, but the user manual says 18-30vdc. which is correct?

I tested at 10v. It works. Good to have a variable voltage bench supply to test these! I am running at 24v.

How can I connect this drive to a controller with a common cathode? Is it even possible? The controller has a common ground, but no common anode.

Unfortunately, unlike the DM542, these have the anode connected together in a common-anode configuration. You will need to use an inverter if using active-high pulse or direction signals, or invert the signal in the software.

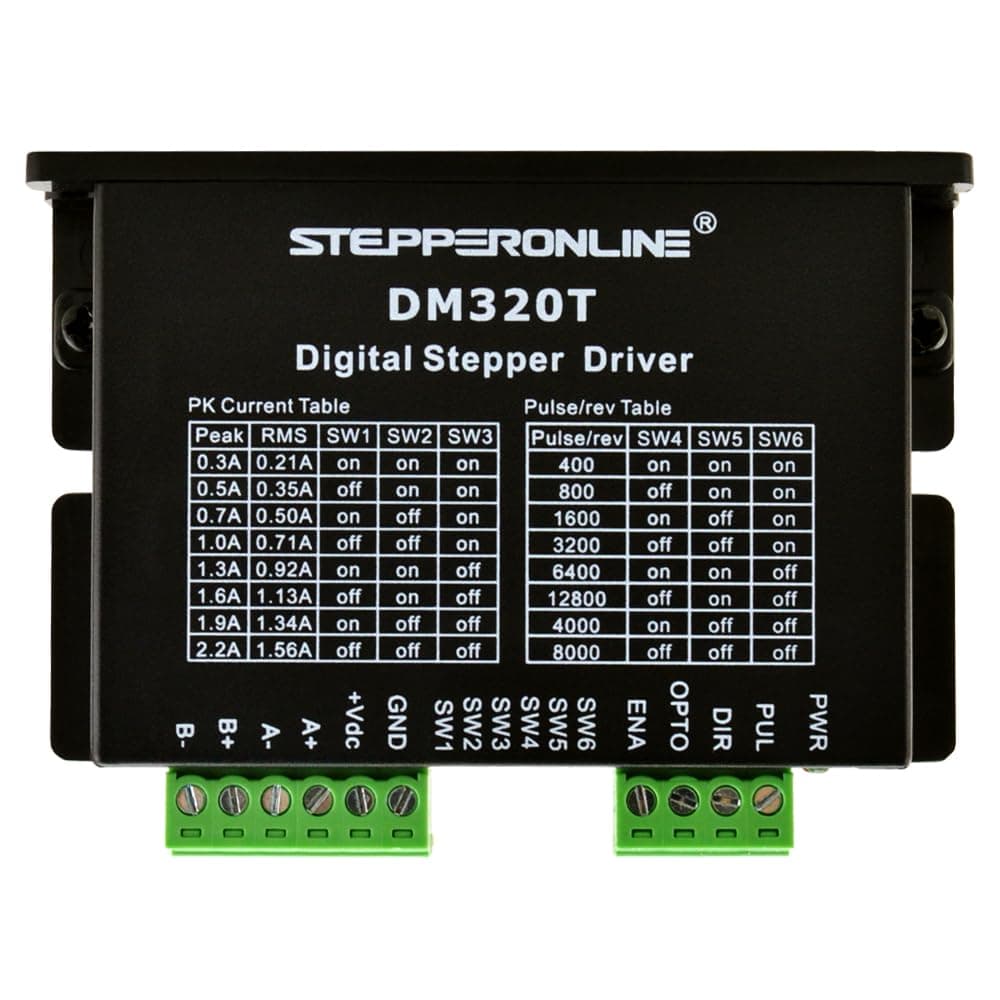

STEPPERONLINE Digital Stepper Driver 0.3-2.2A 10-30VDC 1/64 Micro-Step Resolutions for Nema 8, 11, 14, 16, 17 Stepper Motor
