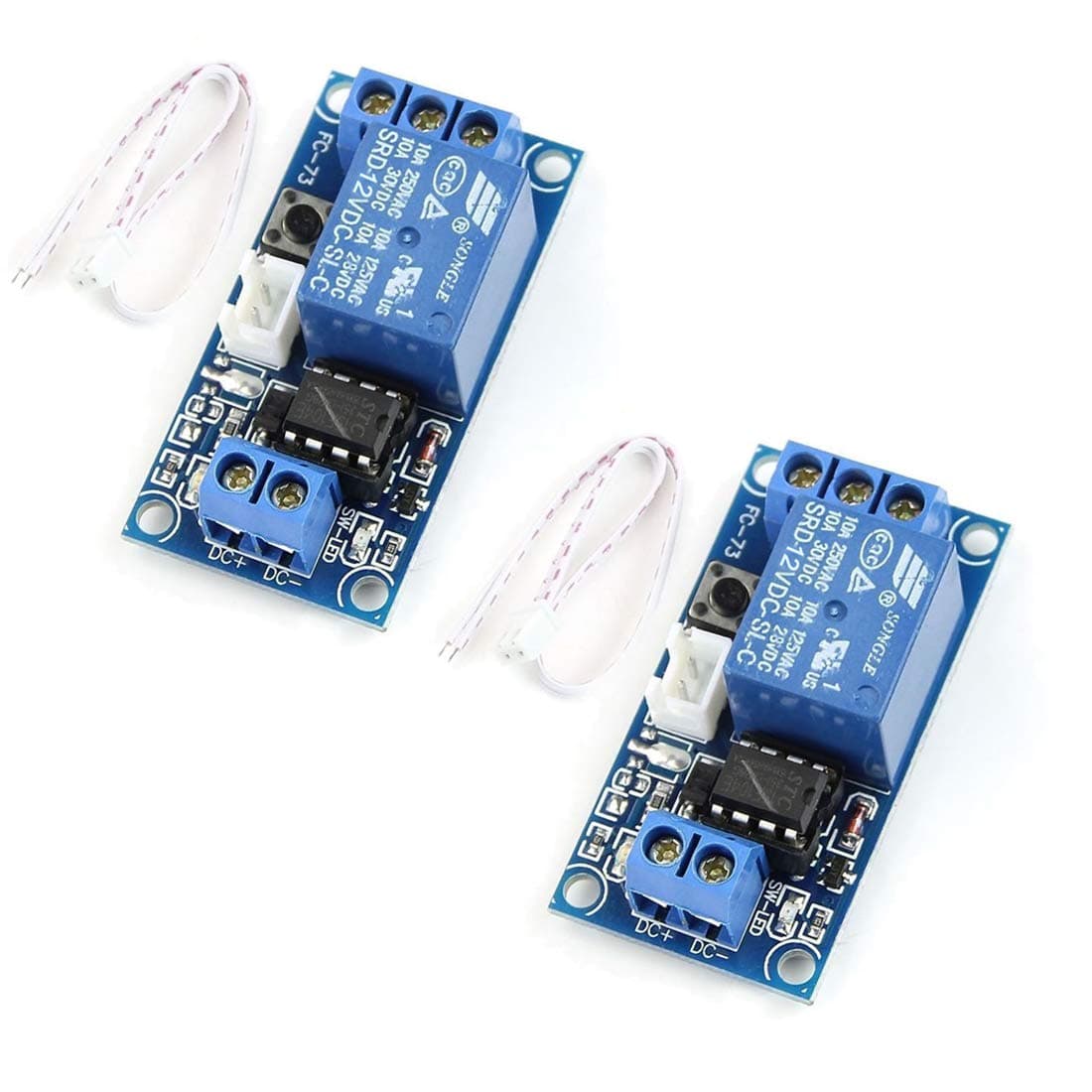

HiLetgo 2pcs 12V Single Bistable Self-Locking Relay Module Push to Start and Stop

HiLetgo 2pcs 12V Single Bistable Self-Locking Relay Module Push to Start and Stop

Q: Does the module draw current when in the open state? If so, how much current is drawn.

I haven't measured it's current draw when the relay is off, but I could almost bet this only takes a few milliamps. That 8-pin controller chip is not going to draw much energy. The biggest current draw is when the relay coil is turned on - probably 80 or 100 mA for the coil.

Q: Will this switch reset if the dc power is removed?

Yes they revert to default when power is removed

Q: Is this limited to a 30v dc application or can i use this to switch my 12v dc devices? if so, what is the amp rating for a 12v dc device? thanks!

Contact Type Normally Open Current Rating 10 Amps Brand HiLetgo Coil Voltage 12 Volts Contact Current Rating 10 Amps Maximum Switching Current 10 Amps

Q: How would one orient a polarized 0.1uF capacitor in the momentary switch circuit?

If you are suppressing transients then the cap should be connected between line and ground in a DC circuit.

معرّف المنتج: 476119143

معاملة آمنة

التفاصيل

Connector type
Screw
Contact material
Silver
Contact type
Normally Open
Current rating
10 Amps
Mounting type
Surface Mount

⚡12V Power

🔄Bistable Function

🔒Self-Locking

يُشترى معًا بشكل متكرر

HiLetgo 2pcs 12V Single Bistable Self-Locking Relay Module Push to Start and Stop

AEDIKO 4pcs DC 12V Relay Module 1 Channel Relay Board with Optocoupler Isolation Support High or Low Level

HiLetgo 2pcs DC 12V 2 Channel Relay Module with Isolated Optocoupler High and Low Level H/L Level Trigger Module Triggered by DC 12V

الوصف

🔧 Unlock Your Automation Potential!

🔄 VERSATILE USE - Ideal for automation projects, home appliances, and more.
🔌 INSTANT CONTROL - Easily push to start and stop your devices with a single button.
🔒 SECURE OPERATION - Self-locking mechanism ensures your settings stay in place.
📊 RELIABLE PERFORMANCE - Designed for consistent operation with minimal maintenance.
🛠️ EASY INSTALLATION - User-friendly design for quick setup and integration.

The 2pcs 12V Single Bistable Self-Locking Relay Module is a powerful and versatile tool for automating your devices. With its self-locking feature and bistable function, it allows for easy push-to-start and stop control, making it perfect for various applications in home automation and beyond.
