🌟 Elevate Your Projects with Cutting-Edge Tech!

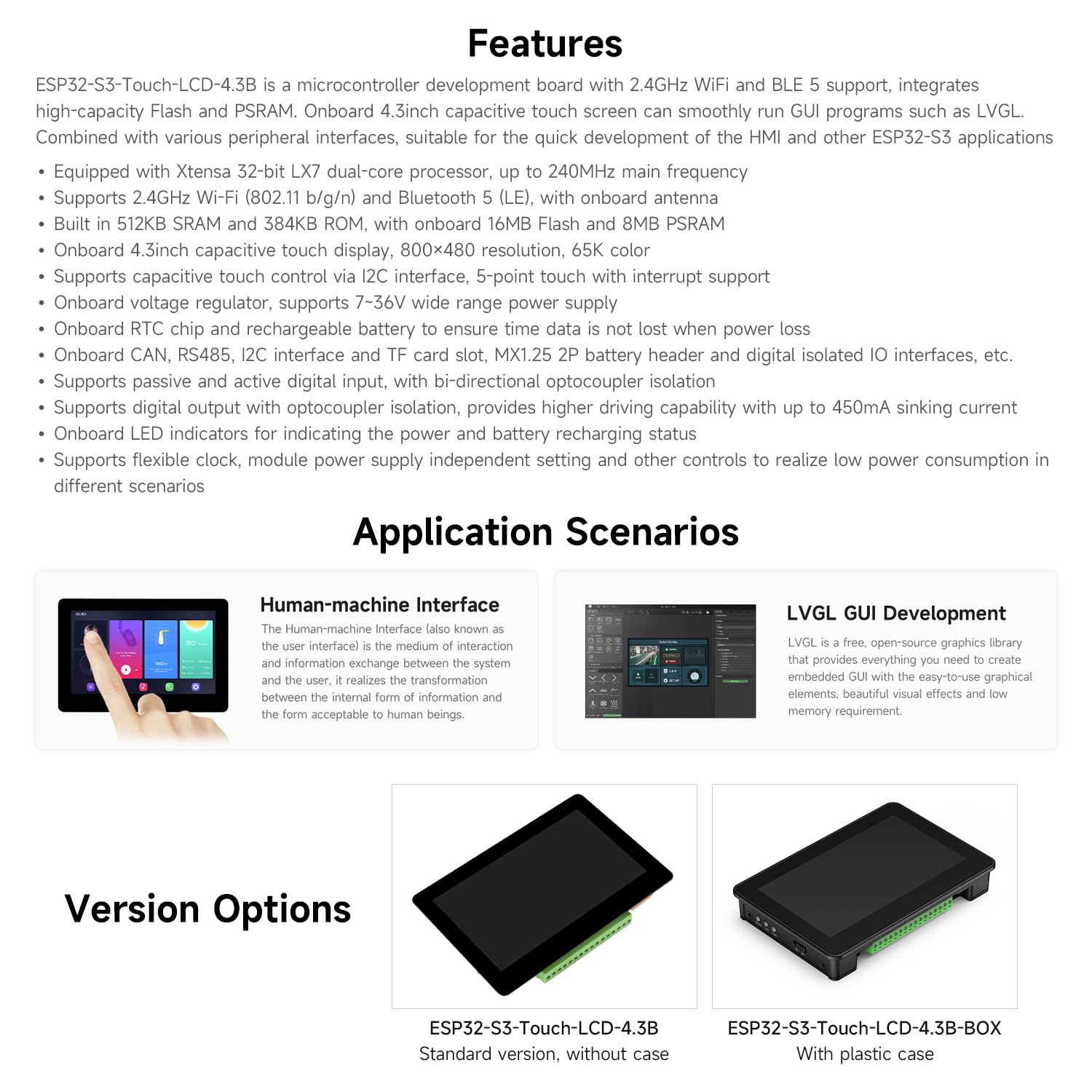

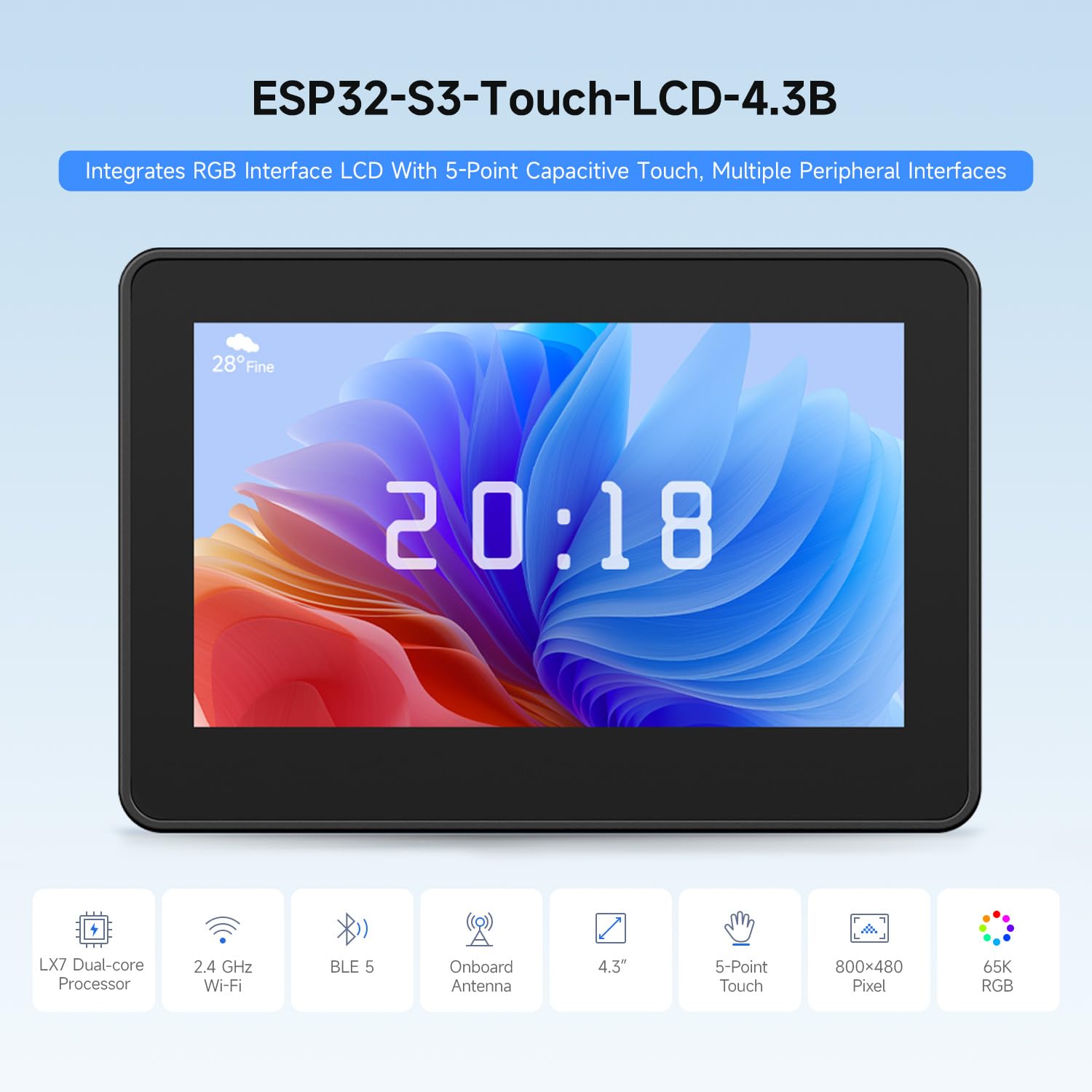

The Waveshare ESP32-S3 4.3-inch Capacitive Touch Display Development Board is a versatile platform featuring a powerful 32-bit LX7 dual-core processor, 800x480 resolution display, and robust connectivity options, making it ideal for ESPHome and Home Assistant projects. With support for multiple interfaces and a wide power supply range, this board is designed for innovative developers looking to create smart solutions.




A**W
Fast update with parallel interface to TFT panel. Download the libraries direct from Waveshare
You need to download the libraries from Waveshare, not the standard libraries for working with ESP32 graphics.The screen is highly responsive as it has a parallel interface to the panel, a must with this high resolution.It uses a port expander to control some of the enable signals, hence you must use the Waveshare code; but this leaves the pins free for using the TWAI (CAN bus) interface - ideal for applications such as car dashboard.If you are a newbie to using LCD panels, then a panel that is already pre-defined in libraries will be easier to start with.Screw terminal connections and glass front bezel make this easy to use in finished products.
