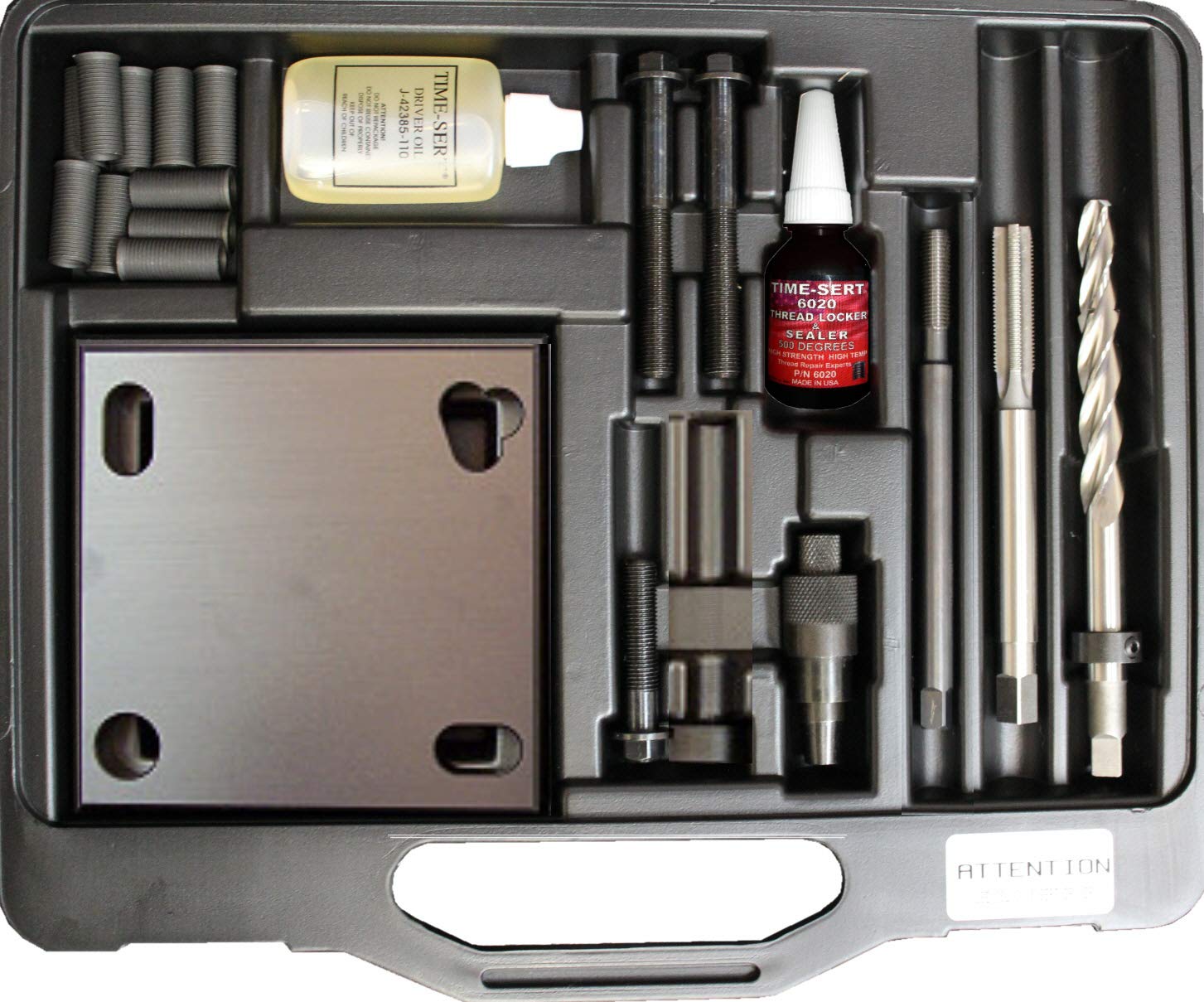

Universal M11x1.5 head bolt thread repair kit by Time-Sert®

Good quality kit to tap and replace head bolts in my Son’s 2003 Toyota Highlander. We taped and replaced all 10 bolts to ensure they were all treated the same to ensure reliance of every bolt. Only a few bolts had pulled out of the head, but we wanted to ensure they were all going to be equally reliable. It was quite simple to place the plate and set the bolts to keep the guide in place while drilling the holes. We used WD40 to lube for drilling out the holes and air to clean out after drilling. The inserts went in real nice and snugged in. Follow the directions step by step and it will go smooth and take no time to finish.

Worked like a charm and Ihave done 5k miles on my new headgasket on my 05 rav4 with the 4 cylinder. I was skeptical and the price at the time was a little higher than I seen elsewhere but I got it faster than I would have from any other site

high quality. the best tool for this repair. I'm a former master tech. 29 years. like an idiot I bought a cheaper tool for this and hated myself. spent the money and it went so smoothly. follow the directions and you can't go wrong.

Easy instruction sheet. Has all you need for the job. Seems a little hefty on price

We purchased this kit and it did the job! Very satisfied with the outcome, but the kit is a little pricey. We ran into one issue during this process. We drilled and tapped all 10 holes, as Timesert suggested, and when we tightened the head down according to specs the 9th hole STRIPPED AGAIN! It pulled the threads in the block as well as the insert completely out. I contacted Timesert to see if there was a solution, and there was! If you ever run into this issue, they sell what they call a BIG SERT add on kit. They supply you with a slightly larger reamer, tap and guide bushing. The new insert is double the thickness and allows you to use the same size head bolt to complete your repair. We are selling both kits if anyone is interested: 636-383-1454.For those who have not attempted this before, it is important to make sure you chip away at the block a little at a time. Literally inch by inch, and make sure to clear the shavings completely or you risk dulling the reamer. Don't just plow through it. This goes for the tapping process as well. It goes a lot smoother when you seal off the head using some plastic and some tape to avoid the metal shavings ending up everywhere on your engine.

This product performed exactly as advertised. The instructions were clear and easy to follow. The process was easy do, and the inserts went in and locked at the correct depth. The new head bolts go in without any of the slop that the original factory threads had and went to the proper depth. I also feel that it is priced fairly for the precision set of tools that it is. Every piece appeared well made and finished and worked without any binding or chatter when used as directed. This kit will have saved me several thousand dollars over the price of having the job done at a shop and will allow me to put my fourth Toyota engine back on the road.https://www.amazon.com/dp/B004P5W81A/ref=cm_cr_ryp_prd_ttl_sol_0TIME-SERT Toyota Camry Rav 4 Head Bolt Kit M11 x 1.5 Part # 2200

I had a bolt pull out of my 2011 Kia Sedona while torquing the second head bolt. The machine shop charged me $120 to essentially use this kit to repair the threads. I got it back and two more threads pulled. I ended up purchasing this and installed a insert for every head bolt. The quality is excellent and has everything you need to repair the pulled threads.

I used kit to retread one stripped bolt in head of camry. I found it easy and quick. The only negative is the instructions could have been more clear. As the headbolt for the camry were long, I had to remove the drill bushing for drilling the final 1/3 the drilling out the opening for the insert and for tapping the treads. I used the guide for the first 2/3 of both steps. The kit came complete with 3 sets of bolts. The camry required use of the longest of the 3 sets.
