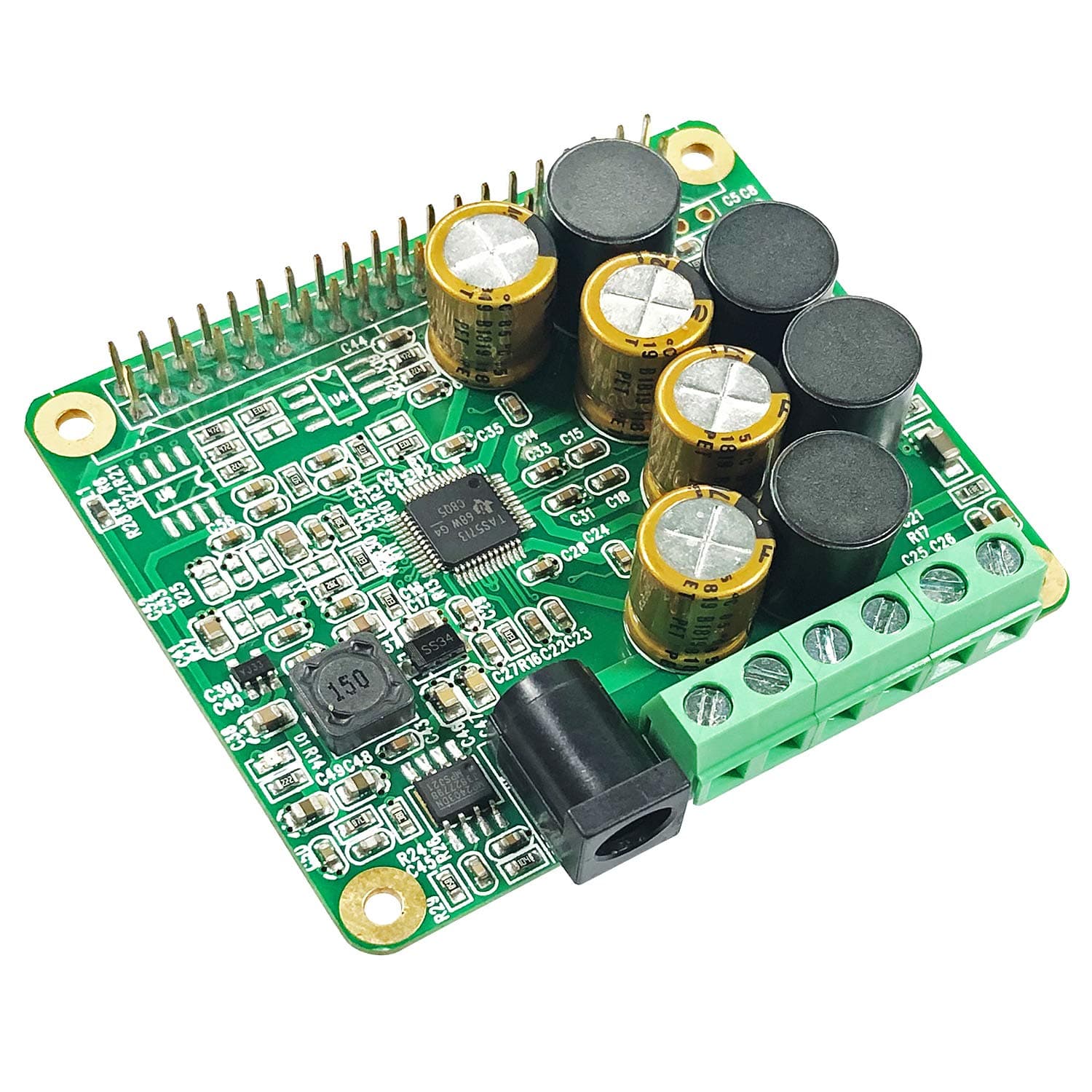

RPI HiFi AMP HAT TAS5713 Amplifier Audio Module 25W Class-D Power Sound Card Expansion Board for Raspberry Pi 5 4 3 B+ Pi Zero Nichicon Capacitor

Hooked this up to my fpp (Falcon Player) for my Christmas lights, changed the dtoverlay found in these reviews, rebooted and had to turn the volume down it was so loud. Finally have something that works great!

I had accumulated some spare parts here and there and felt like making a little HiFi project. I had a Pi/SD card, 7” touchscreen, speaker wire, and banana plugs/fittings on hand as well as a 12V 3A power supply with a DC barrel plug. This Hat brings a 25W amp, and a decent DAC, so that was all the hardware needed other than speakers. It went together as expected and I decided to try the open source moOde as a streamer solution. This, Volumio, and others are included specifically in the online setup documentation. I 3D printed a simple case to house all this stuff (the back cover is still printing) and am presently listening to it as I write this.

I recently purchased the Innomaker DAC and AMP product, and unfortunately, I must say that I am quite disappointed with my purchase. While the product itself seems to be of decent quality, the lack of information in both the manual and product description has made it difficult for me to properly use and enjoy the product. Firstly, the manual that comes with the product is incredibly sparse and lacking in detail. It does not provide any clear instructions on how to set up the DAC and AMP, leaving me to fumble around with the product for quite some time before I was able to figure out how to properly use it. Additionally, the product description on the manufacturer's website also lacks crucial information about the product. It does not provide any information on what types of headphones are compatible with the product, leaving me unsure if my headphones would work with it or not. Overall, I am disappointed with my purchase of the Innomaker DAC and AMP product. While the product itself may be decent, the lack of information in the manual and product description has made it difficult for me to use and fully enjoy the product. I would recommend looking for a different product that provides more comprehensive instructions and product details.

Has worked great for airplaying music. I use it with outdoor speakers and really happy with how easy it was to get working.

It works fine once you figure out the correct configuration. I could not get it to work with Raspberry PI 5. Tried a PI 4, and that still had problems until I went back to the Bullseye version of the OS. Things are flaky in Bookworm. Once I installed Bullseye and then added dtoverlay=hifiberry-amp to the /boot/config.txt file, it was identified in raspi-config. Frustrating that I emailed inno-maker twice for help, but never received a response. I'd probably give it a higher rating if the company indicated the required configuration up front.

I'm using this for a Raspberry Pi media player. I'd already purchased a Dayton bluetooth amp which worked well enough, but needed a USB soundcard to get decent sound from the Pi. Unfortunately that solution also required 12V to the amp and 5V to the pi. I wish I would have seen this earlier. The fact that this is the amp, DAC, and powers the Raspberry Pi makes this ridiculously simple to set up. The downloadable install guide has the information you need to set up Volumio and other media players. I have it hooked up to some bare speakers right now until I can build a cabinet, but I'm not hearing any noise. When I first set it up, I picked the wrong HiFiBerry option, but after reviewing the settings and my selection, I was quickly able to get this working. There's information in the docs on eventual IR support, pinouts showing which pins are in use. It's very thorough.

I can't speak to the longevity of this yet but performance wise it's quite good. I bought this to drive a low power in-wall speaker. I also have a hifiberry AMP2 that I am using to drive a pair of bookshelf speakers. As a test, I hooked one speaker up to the AMP2 and the other to this board and couldn't detect much of a difference. I didn't exhaustively compare the audio quality as these aren't being paired up with audiophile grade critical listening speakers, but for typical consumer grade bookshelf speakers and low to medium volume this board performs quite well. I paired this with a raspberry pi zero W running piCorePlayer and got it working in about 5 minutes.

There are two issues with this amp HAT that made me return it. First, the description is vague regarding how many watts it outputs. The description says 25 watts. I assumed it was 25 watts per channel, but after using it, I'm sure it is only 25 watts total, so 12.5 watts per channel. There is no real reason why this could not have been made clear in the description. Secondly, the headers for attaching the speakers, power supply (if elected) and ground are way too small. I would guess that only wire about 18 AWG would fit in the screw headers, certainly not 14 AWG wire which is a common speaker wire size. Using undersized wire, I did listen to the output and it didn't sound bad, so I give it three stars instead of one.

This is a great little amp/dac. I picked this up over the HiFiBerry because of delivery in lockdown. It is for a small bathroom with a pair of 'Bassface SPL4.2 200w 4" Inch 10cm Waterproof speakers' and works great, loads of power for the room and quility of the sound is great. I used a 19V laptop charger (65W) to power the amp and pi.

Fantastischer HAT um mit einem Raspberry Pi einen WLAN Lautsprecher zu bauen. Ich habe mich gegen die Anschaffung eines fertigen WLAN Lautsprechers entschieden, da ich noch vier sehr gute Lautsprecher aus meiner Hifi Anlage hatte. Der HAT ist einfach zu installieren und ist zusammen mit dem Raspberry problemlos zu einem PiCorePlayer zu machen und in Home Assistant in den Music Assistant zu integrieren.

Makes weirs noises occasionally. Good quality otherwise

Bonjour, Monté sur une RPi 2B avec un Max2Play, ce petit DAC/Ampli rempli son rôle à merveille. Il a une puissance largement suffisante pour sonoriser de manière très correcte Chambres, bureaux, Salle de bain ... Bref toute pièce jusqu'à 15m². Un peu juste pour ma pièce de vie (42m²), mais ce n'est pas ce que je lui demande ici ^^ Pas de parasites. Aucun souffle lorsqu'il ne diffuse pas de musique. Je pense en prendre 3 de plus pour monter mon système multi-room. Notes : - Pensez à avoir une alim 12V 2A (elle suffit à alimenter le DAC + la RPi, ne pas brancher l'alim de la RPi en plus !) - Sous Max2Play, il faut le déclarer comme étant un "HiFi Berry Amp/Amp+". Bref, je n'ai que du positif à donner ici, je conseille fortement !

Causa un mio errore ho chiesto aiuto all'assistenza, che mi ha risposto nel giro di poche ore. Problema risolto, l'hardware è tornato a funzionare. Vista la disponibilità ho poi chiesto lumi sull'installazione di Volumio che è un po brigosetta. Immediatamente arrivata la risposta con tutte le istruzioni per flashare una microsd, e con addirittura le immagini già pronte per il flash non solo di Volumio ma anche di altri software di gestione dell'amplificatore. Con le due casse che erano collegate a un vecchio amplificatore, il mio Pi4b con questo modulo è diventato uno strumento audio formidabile, gestito da Volumio installato sul telefono Android. Software molto completo e ben fatto, continuamente aggiornato e potenziato. I brani musicali che ascolto sono su un disco di rete di grande capacità. La qualità audio è più che buona. Il prezzo complessivo dell'impianto super buono. Per chi vuol sentire buona musica senza "svenarsi" credo proprio di poterlo suggerire.
