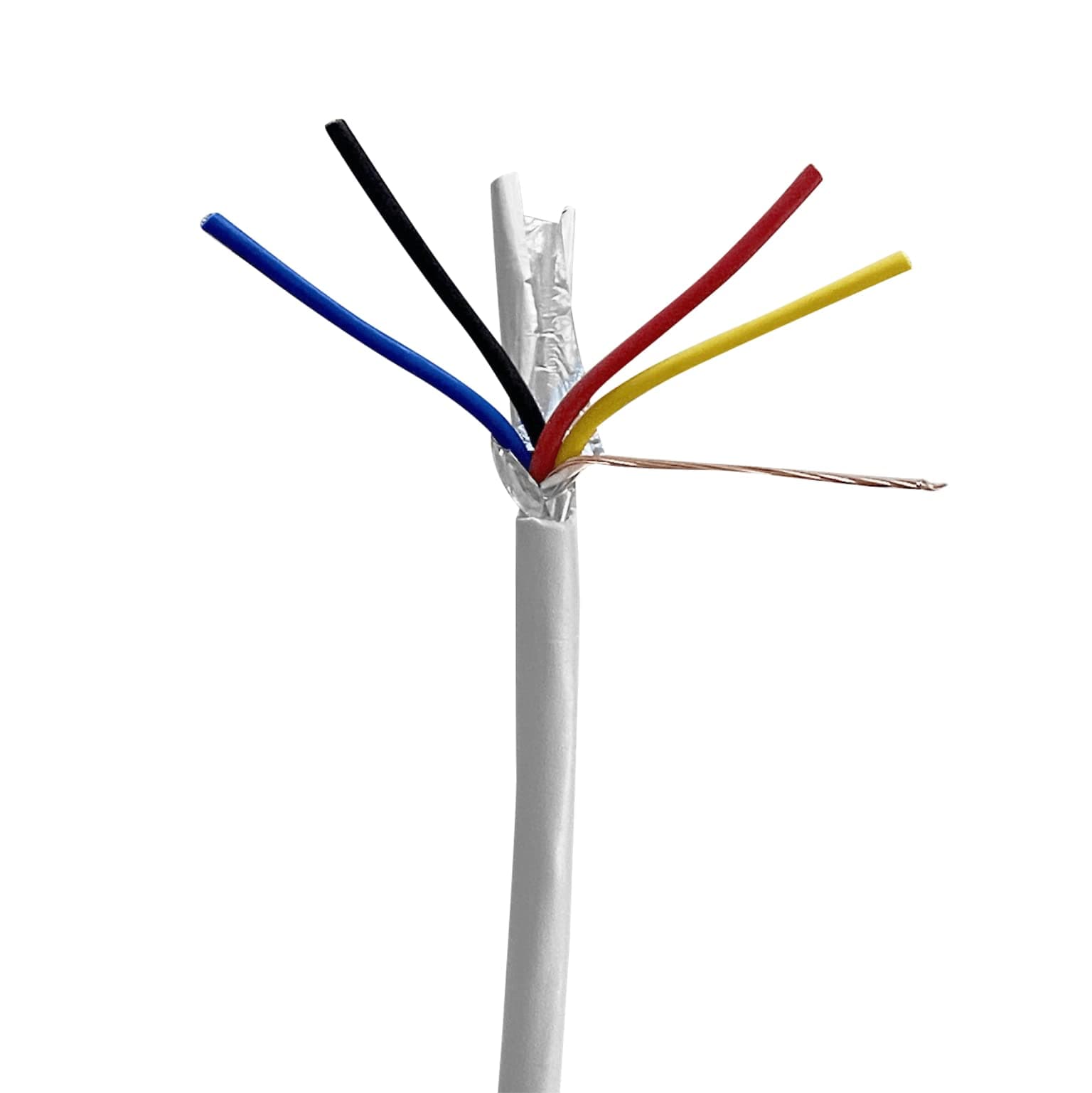

Linear Motion Labs50 FEET 18/4 AWG - SHIELDED STRANDED WIRE/CABLE CNC/STEPPER MOTORS

Q: How flexible is this cable? Would like to know minimum bend radius and expected number of flex cycles

Very flexible. I used it on my CNC and it constantly bends and flexes and it holds up great

Q: Is this wire copper clad aluminum or is it stranded solid copper?

I'm pretty sure this is aluminum wire, not copper. And the wire's insulation is very soft and thick. It works but I swapped out for name-brand wire on my cnc.

Q: Can i use this for hvac communication wire between air handlers and heat pump?

Don’t see why not. Follow the installation instructions, I’m sure they call out the required wire/gauge.

Q: Can the wire be used to connect vfd to cnc sindle (1.5 kw) ? it uses 4 wires 3+1 ground

16awg would be better suited. 1500w motor on 110-120v would draw up to 12.5amps. If this cable is rated for 10 amps, it would not rated for that use. However, if using a 220-240v VFD and spindle, the power consumption would be half of that at 6.25amps. I would confirm this cable is rated for 300v (CL3) and not just 150v (CL2) The length of cable also makes a difference but I would recommend using this for at most NEMA 23 stepper motors, but not a 1.5kw spindle. Get 16/4

4.4/5

Product ID: 330708293

Secure Transaction

Details

Brand
Linear Motion
Material
Copper
No. of wires
4
Manufacturer
Linear Motion
UPC
725873555722

📏50 Feet

🔌18/4 AWG

🛡️Shielded

Frequently Bought Together

18/4 AWG Shielded CNC Wire (50FT) — Flexible Stranded Shielded 18-Gauge 4-Conductor Cable for Stepper Motors, CNC Machines, NEMA Motors, VFD Spindles, CNC Routers, 3D Printers and More!

20AWG 20/2 2 Core Shielded Wire CNC Wire (30FT) UL2464 Tinned Copper Core 20 Gauge Cable Speaker Wire for CNC Router Machine, CNC VFD Spindle, Electrical Appliance, Transformer and 3D Printer,etc

TUOFENG 20 awg Wire Solid Core Hookup Wire - 6 Different Colored Solid Wire Kit 26.3 ft or 8 m Each, 20 Gauge Tinned Copper Wire PVC Solid Core Wire for Breadboard

Description

🔧 Elevate Your Engineering Game!

QUALITY ASSURANCE - Elevate your 3D printing and CNC experience with premium materials.
SMOOTH FLEXIBILITY - Designed for seamless bending in CNC and 3D printer chains.
UPGRADE YOUR SETUP - The essential enhancement for any CNC or stepper motor kit.
INTERFERENCE REDUCTION - Shielded 4 conductor wire minimizes signal disruption.
UNIVERSAL COMPATIBILITY - Works flawlessly with Nema 17, Nema 23, and various stepper motors.

The Linear Motion Labs 50 Feet 18/4 AWG Shielded Stranded Wire is engineered for optimal performance in CNC and 3D printing applications. Its flexible design allows for smooth movement, while the shielded construction ensures minimal interference, making it the ideal choice for a variety of stepper motors.
