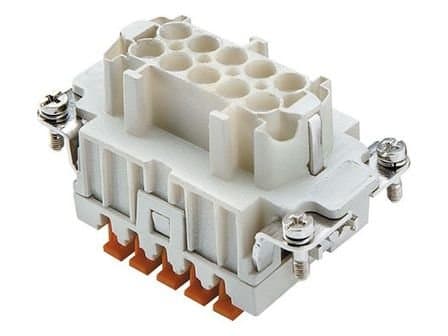

ILME even has the connector lock CHS Series from Quetschs Teckern designed to handle the connecting electrical connectors to be optimized. The range is characterised by an easy to assemble - , regardless of whether on a workbench or on the go. With its cage The CSH Series Coil Spring connection and the locking system elements the consistent advancement of the cse range, which is equipped with conventional cage spring connectors. The CSH Series offers the following benefits.Clear easy to connect without tools Save time in comparison to conventional screw and cage spring fittings, quick Optischeunterscheidung the conductor contacts (not attached), connect the conductor to 2.5 mm? With or without ferrule, high vibration resistance, Wired.Each contact chamber is a locking element. When the lock button is pressed, the cage pull spring clip closed and there's a reliable Conductor connection. Contrast the locking element against the connection objects and arrive not pressed down After being pressed a locking device is elements this fully in the body use of contact.The connector so the CSH Series (crimp connectors) offers a simple, quick and high quality connection. If to make a ladder to release, the locking elements can easily with the help of normal screwdriver from rolling away (0.5 mm x 3.5 mm) has Gelöstwerden. For need of screwdriver in the opening the lock button is introduced and is easy to push down on gentle jumping the button unddie cage upwards Spring Clip is in the open position.The CSH connectors are suitable for different applications in a operating temperature range from -40 °C to + 125 °C, and in the following sizes: Technical data: • Also Available As 6P, 10P, 16P and
