⚡️ Turn heads with every cut — precision tools for the millennial maker!

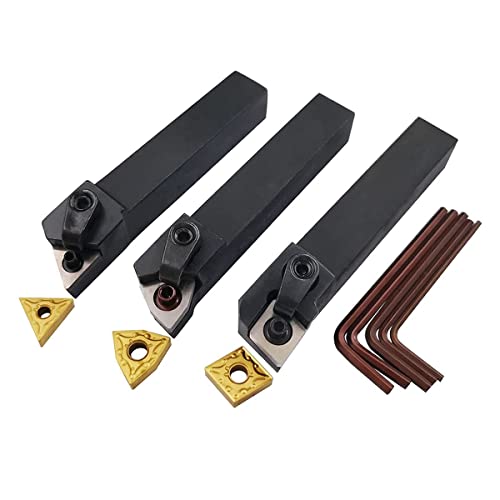

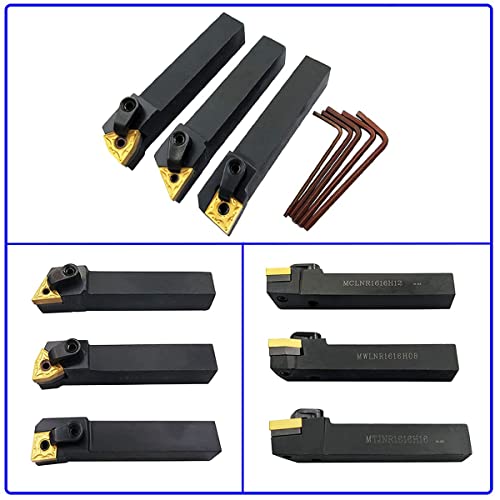

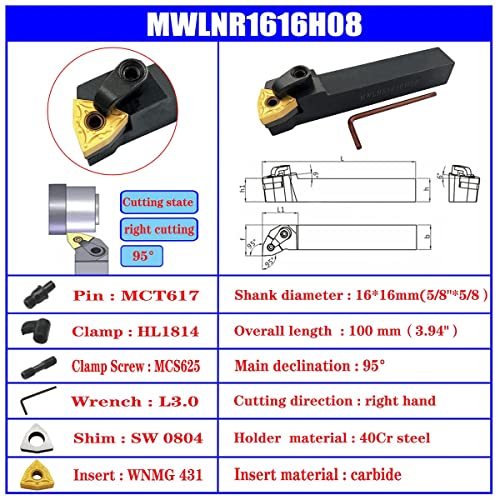

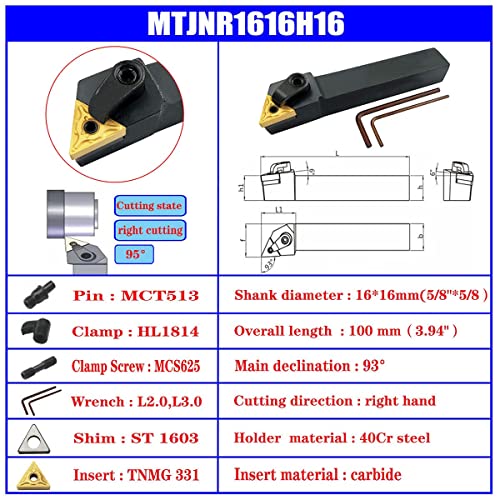

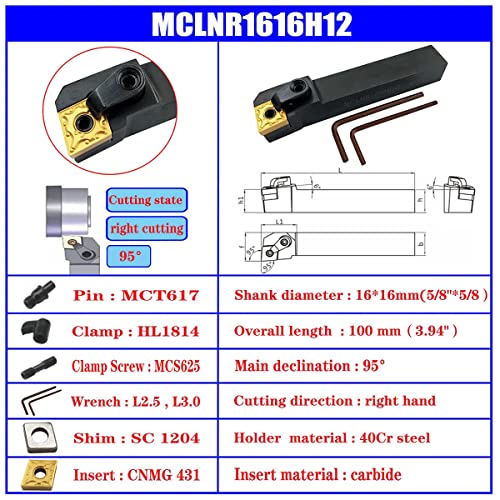

This 3-piece CNC lathe turning tool holder set features robust 40Cr steel holders with a sleek black oxide finish and three high-hardness carbide inserts (CNMG431, WNMG431, TNMG331). Designed for right-hand cutting with a 16mm shank diameter, it offers professional-grade durability and precision for finishing and semi-finishing steel, making it an essential upgrade for hobbyists and pros seeking superior surface finishes and tool longevity.
| ASIN | B076WTPBVK |
| Batteries Included? | No |
| Batteries Required? | No |
| Best Sellers Rank | #121,600 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #58 in Turning Inserts |
| Capacity | 16 Millimeters |
| Customer Reviews | 4.5 4.5 out of 5 stars (382) |
| Cutting Diameter | 16 Millimeters |
| Date First Available | April 19, 2018 |
| Finish | Black Oxide |
| Is Discontinued By Manufacturer | No |
| Item Package Quantity | 3 |
| Item Weight | 1.61 pounds |
| Item model number | YQ17-DE9-215 |
| Manufacturer | XUZHOU BAIYI Metal Technology Co., Ltd. |
| Measurement System | Imperial, Metric |
| Number Of Pieces | 3 |
| Package Dimensions | 6.65 x 4.92 x 1.54 inches |
| Part Number | YQ17-DE9-215 |
| Thread Size | 1/2-20 UNC |
K**T
An absolute must buy for the price!
They showed up much quicker than expected! Nice and heavy 5/8 inch tool holders/ cutters. I put all three on the lathe to check them out and they did a great job. Less pressure needed so less heat created. The finish is as good as any other Cutter I have in my collection including way more expensive brands. I didnt have high hopes but... I was wrong. ( Note: I have only cut aluminum 1 1/2 round bar with them so far just to compare them to my others.)
J**.
GO 4 IT!
Don't let the low price stop you, this tooling took my hobby lathe skills to the next level! I am amazed how good the finish surface is.
J**O
Los insertos son bastante fuertes y robustos. Compre un paque de de insertos izquierdos y derechos y hasta el momento siguen funcionando muy bien. Los he puesto a prueba en muchas ocasiones y han resistido muy bien.
B**.
stays sharp pretty long
handles an interrupted cut pretty well. pro home hobby this is for you. I have run each for hours and never changed an insert. This is the biggest tool you will get into an axa xl tool holder. the inserts in them are for finishing, they are great for that. If you want to hog off a lot of material you need different inserts. The rigidity of the holder should handle a much deeper depth of cut with a roughing insert. I could get a good finish to about 80 thou depth. at a tenth the chips fail to break and the finish suffers. I took 125 without breaking the cutter but made the machine work harder than it should have for that depth. results were similar for all 3 insert types. I always favor wnmg.
B**H
no problems
I got this several years ago. I've used it many times. No issues with it. Holds the inserts firmly Nothing breaks, nothing moves. Everything I can ask for from an insert holder. Good value.
A**R
Not necessarly for a bench lathe, but will work.
I wanted these for a long time and decided to get them. I new I had to mill the bottom off from a 5/8" to a 1/2" to fit the tool holder. Of-course you know, you have to remove the bottom so you can adjust the height level to be on-center with your work. nice tool. Thanks. BTW, It looks intimidating to "normal" tools you use because of the size of it. It's meant for CNC use.
J**L
next day delivery,more like next week delivery
Good quality for the price
K**S
Great product
Great looking product, looks as good as the very expensive ones I use. Will update.
