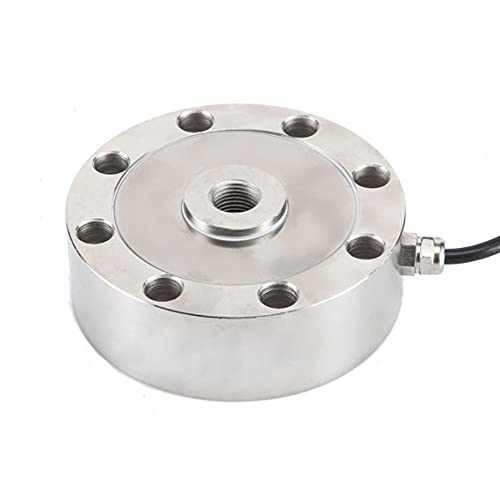

ATO.COM Ato 1000kg Tension & Compression Load Cell // 5Ton/10Ton Pancake Type Load Cell, Radius Type, High Precision Tension Meter, Force Load Cell Sensor (1.5Ton)

Name: ATO.COM Ato 1000kg Tension & Compression Load Cell // 5Ton/10Ton Pancake Type Load Cell, Radius Type, High Precision Tension Meter, Force Load Cell
Brand: Ato.com
SKU: 731861499
Price: 48481.89 EGP
Availability: OutOfStock

Product ID: 731861499

Secure Transaction

Details

Brand
ATO.COM
Manufacturer
ATO
Material
Stainless
Response time
4 Milliseconds

Description

[Capacity] Tension and compression load cells have capacity range from 500kg to 10 tons to choose from
[Function] Circular load cell is also known as pancake load cell, with good anti-eccentric load performance, low profile, high accuracy and complete specifications
[Specification] Accuracy: 0.05%FS(linearity + hysteresis + repeatability); Sensitivity: 2.0±0.1mV/V; Bridge Voltage: DC 5~10V
[Application] ATO tension and compression load cell can be applied for platform scale, truck scale, railway weighing and warehouse material level measurement and control

Model: ATO-LCST-TJH-4B Shipping Weight: 1.5~60kg Capacity Range: * 500kg ~ 200 tons Accuracy: 0.05% FS (Linearity + Hysteresis + Repeatability) Sensitivity: 2.0±0.1mV / V Fluency: ±0.000 .05% FS /30min Zero Output: ±1%FS Zero Temperature Effect: ±0.05%FS/10°C Output Temperature Effect: ±0.05%FS/10°C Operating Temperature: -20°C~+65°C Input Impedance: 380±10Ω or 750± 15Ω Imp output edance: 350±3Ω or 700±5Ω Insulation resistance: ≥5000MΩ Safety overload: 150%FS Bridge voltage (excitation voltage): DC 5~10V Answer: team3-4ms Material: Alloy steel or stainless steel Protection class: IP67 Cable length: 3m (<<<5 tone), 19.9m (≥5tone) Wiring: EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Specifications

ASIN	B0BWJ8WBHZ
Item model number	ATO-LCST-TJH-4B
Manufacturer	ATO
Package Dimensions	19.99 x 16.89 x 13.79 cm; 1.91 kg
